Week 4 Class Activity

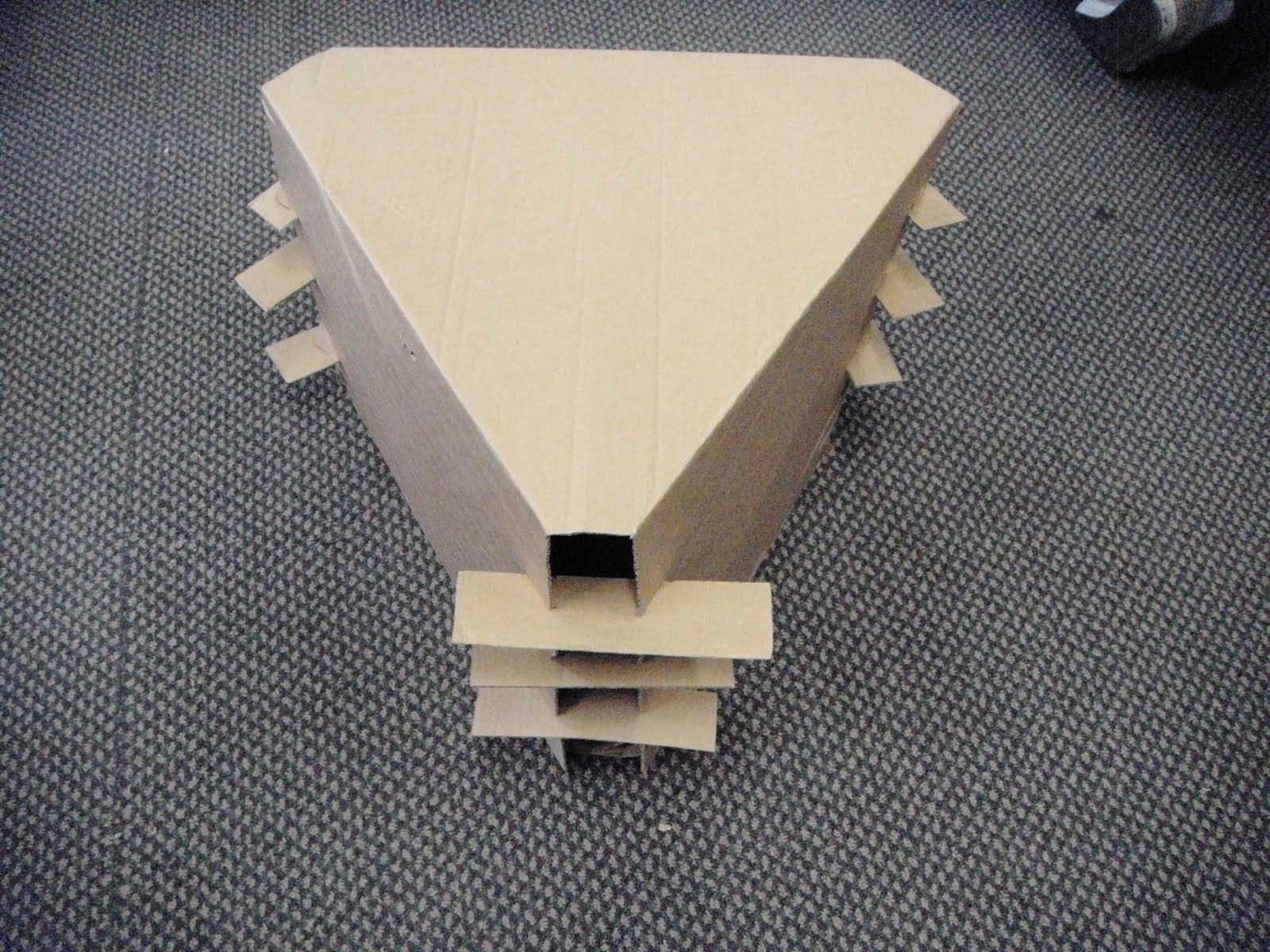

My Group's Chair

Other Group's Chair

(Update) Week 2 Class Activity: Marshmallow Challenge

My Group. First Attempt

My Group: Second Attempt

Other Groups

Week 3: Chair 3 :

Sketches:

Week 4: Chair 2 : Iuta, 2000

Designed by: Antonio Citterio
Dimensions: 540mm w x 550mm d x 800mm h; 440mm seat h; 610mm w x 550mm d x 800mm h; 440mm seat h; 650mm arm h
Materials: Support structure in tubular steel and steel sections; bright chromed and bright brushed die-cast aluminium. Hard or padded seat in thermoplastic material; shaped polyurethane. Padded seat cover in fabric or leather. Back in pressed steel mesh; white or grey varnished; edge profiles in bright anodised aluminium. Ferrules in thermoplastic material

Sketches:

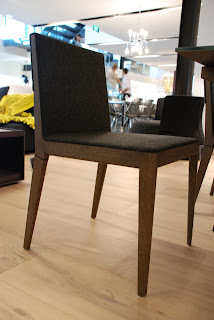

Week 4: Chair 1: El, 2009

Designed by: Antonio Citterio
Dimensions: 500mm w x 545mm d x 800mm h; seat 445mm h
Materials: Frame in grey oak, brushed light oak or brushed black oak.

Sketches:

Week 3: Twa Terminal Building, 1962

Designer: Eero Saarinen
Location: JFK Airport, New York, USA
Function: Airport Terminal Building



The original terminal for Trans World Airlines. Portions of the original complex have been demolished, and the Saarinen terminal (or head house) has been renovated, partially encircled by and serving as a ceremonial entrance to a new adjacent terminal completed in 2008. Together, the old and new buildings comprise JetBlue Airways JFK operations and are known collectively as Terminal 5 or simply T5.

The City of New York designated both the interiors and the exteriors of the Saarinen terminal a historic landmark in 1994 and in 2005 the National Park Service listed the Trans World Flight Center on the National Register of Historic Places.

While noted architect Robert A.M.Stern called the evocative Saarinen-designed TWA Flight Center "Grand Central of the jet age", the pragmatic new encircling terminal has been called "hyper-efficient" and a "monument to human throughput".

While Jet Blue built a new terminal behind the old TWA base, no one could use it because it was unwieldly for todays security screening. The Port Authority spent $20 million in removing the asbestos inside it in hopes of renting it out, to no takers.

Now it is believed the terminal will become the lobby of an airport hotel with 150 rooms, and the PA is looking for investors to build a hotel between the old TWA terminal and the new JetBlue base.

While the site may seem like an advantageous place to build a hotel, the owners will have to pass FAA inspections and follow the building's resistry as a historic site. Still, with shopping and dining options planned for the old TWA terminal, the site could draw a considerable amount of traffic to one of the worlds most iconic buildings.

The building took form of a huge bird with wings spread in flight.

Sources from:
http://www.theloweroad.com/the-lowe-road-inflight-magazin/2011/2/8/twa-terminal-to-take-off-into-a-boutique-hotel.html
http://en.wikipedia.org/wiki/TWA_Flight_Center
http://www.cambridge2000.com/gallery/html/P73127487e.html
http://en.structurae.de/structures/data/index.cfm?id=s0000428

Week 3: Vitra Fire Station, 1993

Designer: Zaha Hadid
Location: Weil am Rhein, Germany
Function: Exposition space, Fire Station


Vitra Fire Station is Hadid's first major built project. It is composed of a series of sharply angled planes, the structure resembles a bird in flight.

This building deals with the problem of bringing together an idea of landscape with the program of the factory. Hadid's intention was of 'sucking in' urbanism into the site and also to pull in the landscape. In this sense the Vitra factory is perceived as a huge mass and paradoxically the insertion of another new building was chosen as the way to break it and channel in the vitality of a fresh urbanity.

The proposals for the functions of this building were always elastic. The idea of the Programmatic wall absorbs the expansions and contractions of the programs as the spaces slide into each other. At one point the volumes begin to converge and the ceiling to break to create an entrance canopy. At the same time there is also the idea of bringing light into this plane whether is day or night.

The building is made out of the garage space and the 3 'beams' (these are long, thin volumes that contain the working spaces). The roof of the garage rests on four walls and is illuminated from the floor. When the doors are open, it seems very light. During the design process Hadid already perceived that this large space could host uses different from that of a garage. Nowadays this space serves as another exhibition gallery for the Vitra Design Museum/Vitra Chair Museum.

The building is 90 meters long. The interiors are dark green and dark red with the exception of the 'wall of light' that is gold. At the entrance, where the canopy and all the spaces meet, the volumes overlap and there is also a cut in the ceiling where the stair appears. The lighting comes from the edges, following the idea that the building is made out of walls that eventually become volumes.

The room upstairs cantilevers over the courtyard, creating a terrace that also serves as the roof for the space below. The louvers of this room give thermal control to the south facing spaces, while the opposite facade is dominated by large frameless windows, all the more impressive because of the curvature of the building.

There is a preoccupation for the idea of layering and how the solid or transparency defines the spaces. Light is the medium that allows for the transformation of planes into volumes containers of space, and the control over the quality of light in these spaces is determinant.

The transparency is enormous, at moments is hard to tell what is outside and what is inside.
The potential of creating a space of great flexibility in the context of the Vitra factory is tied with the idea o 'sucking in' urbanity. The firemen, who are part of the workforce at Vitra, could invite other workers to come and use the facilities for social gatherings of the workers in general and they could also use it to entertain each other or even invite other people to barbecues for example. In this way the building is transformed into a 'social condenser'.




Sources from:
http://www.0lll.com/lud/pages/architecture/archgallery/hadid_vitra/pages/vitra_01.htm
http://www.britannica.com/EBchecked/topic/1077532/Vitra-Fire-Station
http://www.archdaily.com/112681/ad-classics-vitra-fire-station-zaha-hadid/vitra-model-relief/
http://www.archidose.org/Oct99/101899.html
